CAP ALUM 6800UF 20% 500V SCREW

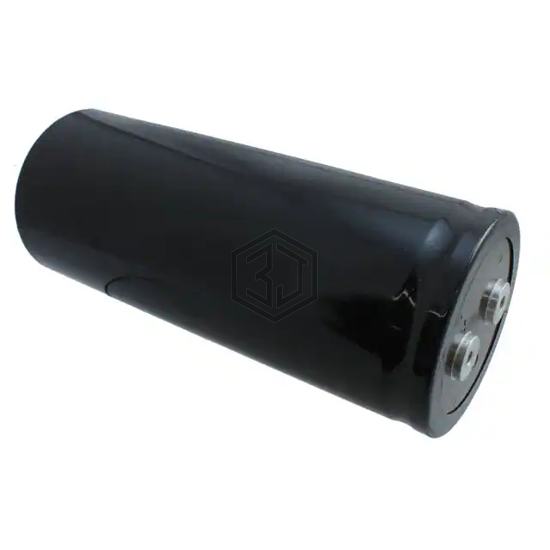

E37X501CPN682MEM9M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,486
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 16mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 31.725 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 8.661" (220.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X501CPN682MEM9M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37X501CPN682MFF5M | United Chemi-Con | CAP ALUM 6800UF 20% 500V SCREW | 95% | View |
| E36L401CAN682MEJ1U | Chemi-Con | CAP ALUM 6.8MF 20% 400V SCREW CH | 86% | View |
| E37X421CPN682MFB7U | United Chemi-Con | CAP ALUM 6800UF 20% 420V SCREW | 85% | View |
| E37F351CPN682MF92M | United Chemi-Con | CAP ALUM 6800UF 20% 350V SCREW | 81% | View |
| E33D351CPN682MFA5Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 80% | View |
| E36D501LGN682MFE3U | United Chemi-Con | CAP ALUM 6800UF 20% 500V SCREW | 52% | View |
Submit your RFQ for E37X501CPN682MEM9M and get a quote within 24 hours.
