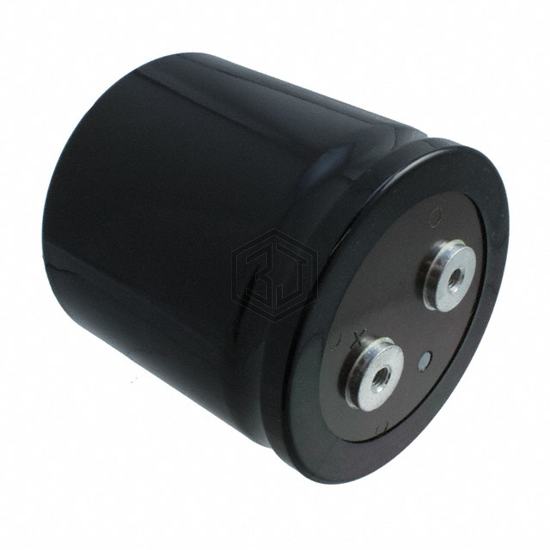

CAP ALUM 6800UF 20% 350V SCREW
E37F351CPN682MF92M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,869
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 14mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.931 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 3.661" (93.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37F351CPN682MF92M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D351LPN682TEE3N | United Chemi-Con | CAP ALUM 6800UF 350V SCREW | 100% | View |
| E33F351CPN682MFB7Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 98% | View |
| E33D401CPN682MFB7Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 96% | View |
| E37X421CPN682MFB7U | United Chemi-Con | CAP ALUM 6800UF 20% 420V SCREW | 93% | View |
| E36D451HPN682MEE3U | United Chemi-Con | CAP ALUM 6800UF 20% 450V SCREW | 84% | View |
| MAL210658682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 63V SCREW | 52% | View |
Submit your RFQ for E37F351CPN682MF92M and get a quote within 24 hours.
