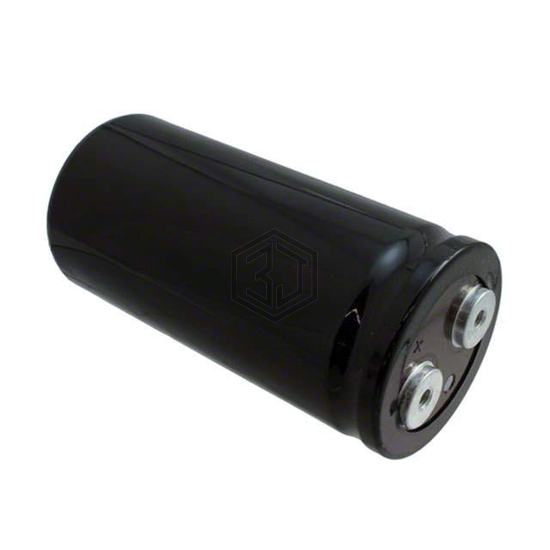

CAP ALUM 3900UF 20% 450V SCREW
E37X451CPN392MDE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,120
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 42.441 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X451CPN392MDE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43464A5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 450V SCREW | 99% | View |
| E37X451CPN392MEA5U | United Chemi-Con | CAP ALUM 3900UF 20% 450V SCREW | 99% | View |
| B43723B5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 450V SCREW | 97% | View |
| E37L501CPN392MFA5U | United Chemi-Con | CAP ALUM 3900UF 20% 500V SCREW | 87% | View |
| 36DY392F350DD2A | Vishay Sprague | CAP ALUM 3900UF 350V SCREW | 84% | View |
| LNC2W392MSEG | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 79% | View |
Submit your RFQ for E37X451CPN392MDE3M and get a quote within 24 hours.
