CAP ALUM 100000UF 50V SCREW

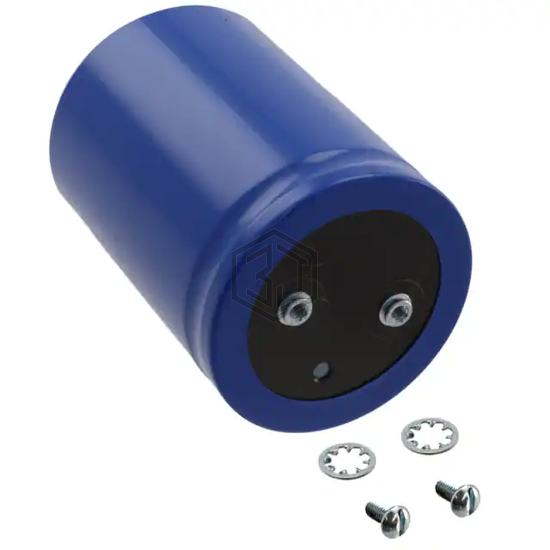

E36D500LPN104TEA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100000UF 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,519
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D500LPN104TEA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1V104MSE | Nichicon | CAP ALUM 100000UF 20% 35V SCREW | 77% | View |
| LNR1V104MSEN | Nichicon | CAP ALUM 100000UF 20% 35V SCREW | 77% | View |
| MAL210116104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 25V SCREW | 56% | View |
| LNR1A104MSEN | Nichicon | CAP ALUM 100000UF 20% 10V SCREW | 56% | View |
| LNR2A104MSEB | Nichicon | CAP ALUM 100000UF 20% 100V SCREW | 56% | View |
| E36D250HPS104MC79U | United Chemi-Con | CAP ALUM 100000UF 20% 25V SCREW | 56% | View |
Submit your RFQ for E36D500LPN104TEA5M and get a quote within 24 hours.
