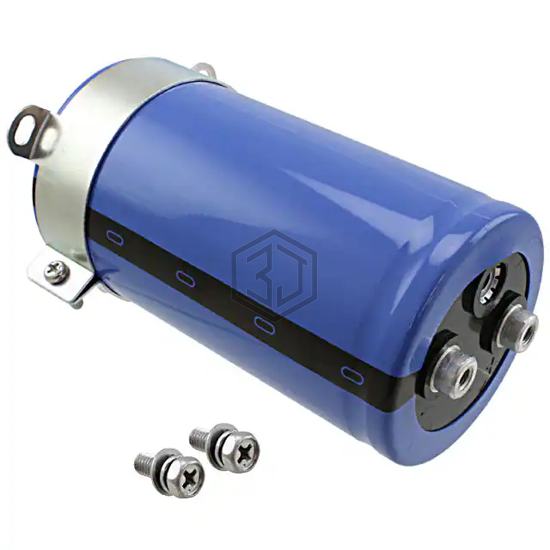

CAP ALUM 100000UF 20% 35V SCREW
LNR1V104MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100000UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.8 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1V104MSEN | Nichicon | CAP ALUM 100000UF 20% 35V SCREW | 97% | View |
| MAL210116104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 25V SCREW | 84% | View |
| MAL210157104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 40V SCREW | 83% | View |
| CGS104U025X3L | Cornell Dubilier Electronics (CDE) | CAP ALUM 100000UF 25V SCREW | 79% | View |
| MAL210117104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 40V SCREW | 75% | View |
| PEH200KO6100MB2 | KEMET | CAP ALUM 100000UF 20% 40V SCREW | 75% | View |
Submit your RFQ for LNR1V104MSE and get a quote within 24 hours.
