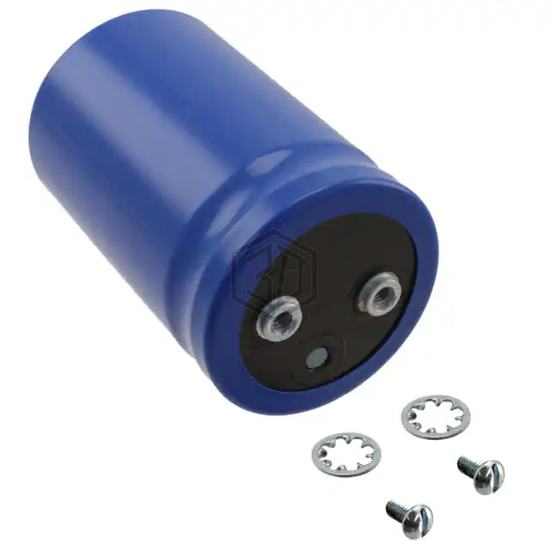

CAP ALUM 1800UF 20% 450V SCREW
E36D451HPN182MCB7M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,972
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 138.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.036 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D451HPN182MCB7M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500C182T450BF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 450V SCREW | 100% | View |
| LNU2H182MSEH | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 85% | View |
| LNY2W182MSEFBN | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 85% | View |
| LNY2G182MSEG | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 74% | View |
| DCMC182T250EH2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 250V SCREW | 68% | View |
| MAL250016182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 400V SCREW | 64% | View |
Submit your RFQ for E36D451HPN182MCB7M and get a quote within 24 hours.
