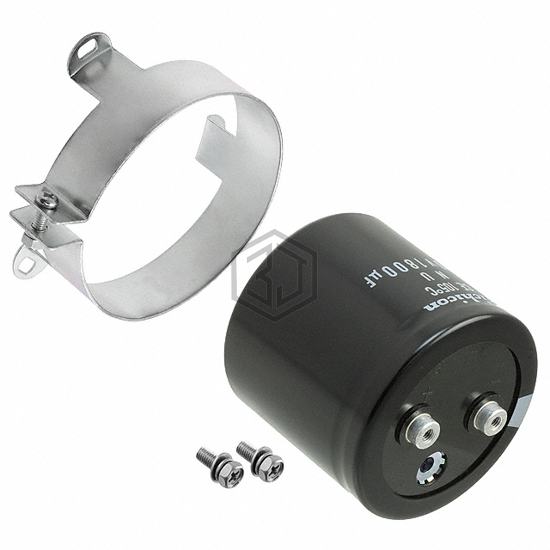

CAP ALUM 1800UF 20% 500V SCREW
LNU2H182MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,643
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.36 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 2.874" (73.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43742A6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| LNU2H182MSEGBN | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| LNU2H182MTEG | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| LNU2H182MTEH | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| LNU2H182MSEHBB | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| LNUN7182MTEG | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 95% | View |
