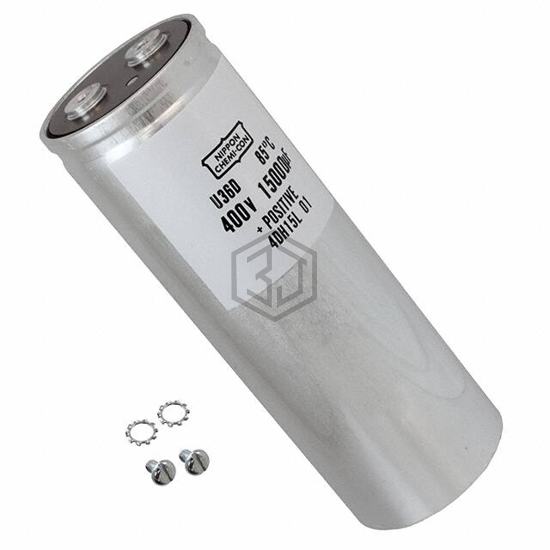

CAP ALUM 15000UF 20% 400V SCREW
E36D401CAN153MEM9Q is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15000UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 8.625" (219.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2W153MSEJBN | Nichicon | CAP ALUM 15000UF 20% 450V SCREW | 92% | View |
| LNY2V153MSEHBB | Nichicon | CAP ALUM 15000UF 20% 350V SCREW | 91% | View |
| MAL210233153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 250V SCREW | 70% | View |
| LNT2A153MSE | Nichicon | CAP ALUM 15000UF 20% 100V SCREW | 56% | View |
| B41456B9159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 56% | View |
| E32D101HPN153MD79U | United Chemi-Con | CAP ALUM 15000UF 20% 100V SCREW | 56% | View |
Submit your RFQ for E36D401CAN153MEM9Q and get a quote within 24 hours.
