CAP ALUM 15000UF 20% 100V SCREW

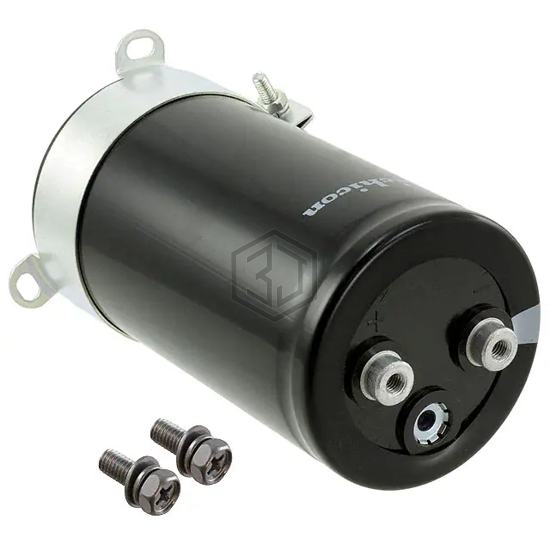

LNT2A153MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.97 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for LNT2A153MSE and get a quote within 24 hours.
