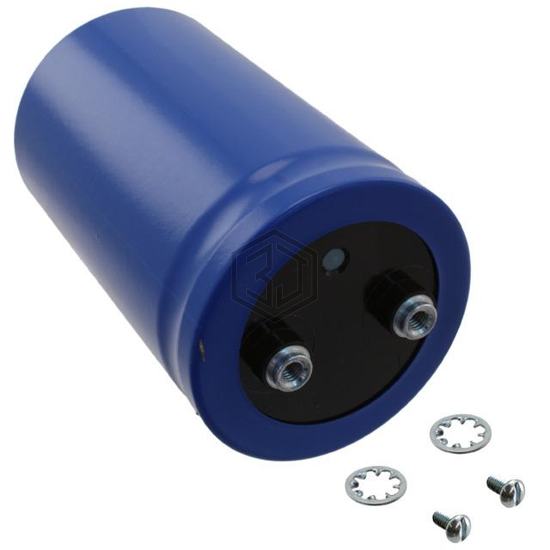

CAP ALUM 47000UF 20% 80V SCREW
E32D800CPN473MDD0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,872
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 6.1mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25.31 A @ 120 Hz |
| Ripple Current @ High Frequency | 28.3472 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.125" (130.18mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E32D800CPN473MDD0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D800CPN473MEA5U | United Chemi-Con | CAP ALUM 47000UF 20% 80V SCREW | 96% | View |
| E32D630HPN473MCB7U | United Chemi-Con | CAP ALUM 47000UF 20% 63V SCREW | 88% | View |
| E32D101HPN473MED0U | United Chemi-Con | CAP ALUM 47000UF 20% 100V SCREW | 85% | View |
| LNT2A473MSEB | Nichicon | CAP ALUM 47000UF 20% 100V SCREW | 81% | View |
| LNT1K473MSEB | Nichicon | CAP ALUM 47000UF 20% 80V SCREW | 77% | View |
| CGR473U7R5V3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 7.5V SCREW | 63% | View |
Submit your RFQ for E32D800CPN473MDD0M and get a quote within 24 hours.
