Cornell Dubilier Electronics (CDE)

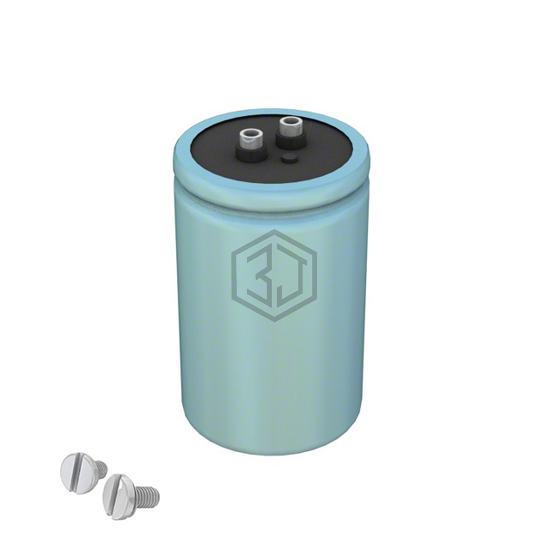

CAP ALUM 47000UF 7.5V SCREW
CGR473U7R5V3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47000UF 7.5V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 7.5 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 7.5 V |
| ESR (Equivalent Series Resistance) | 9.8mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.47 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT2A473MSEB | Nichicon | CAP ALUM 47000UF 20% 100V SCREW | 73% | View |
| LNT1K473MSEB | Nichicon | CAP ALUM 47000UF 20% 80V SCREW | 72% | View |
| E32D630HPN473MCB7U | United Chemi-Con | CAP ALUM 47000UF 20% 63V SCREW | 67% | View |
| B41560A7479M000 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 40V SCREW | 64% | View |
| HVMLS473M5R0EB0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 5V FLATPACK | 61% | View |
| HVMLS473M5R0EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 5V FLATPACK | 61% | View |
