CAP ALUM 10UF 20% 16V SMD

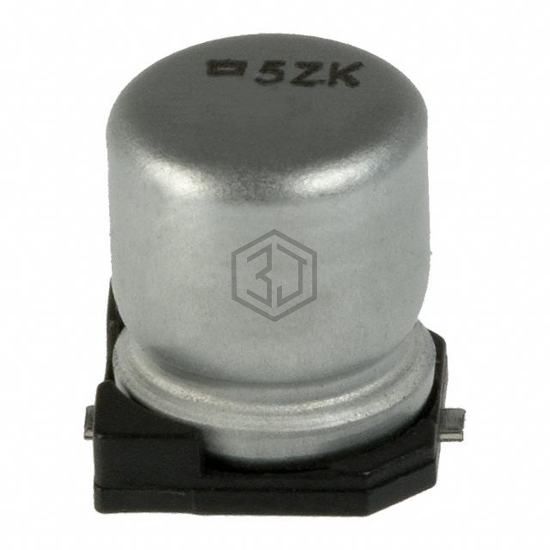

BMVK160ADA100ME60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1A100MCL1GB | Nichicon | CAP ALUM 10UF 20% 10V SMD | 78% | View |
| UWZ1E100MCL1GB | Nichicon | CAP ALUM 10UF 20% 25V SMD | 77% | View |
| EEE-HD1E100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 71% | View |
| EEE-HP1E100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 71% | View |
| UUB1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 66% | View |
| UT106M050HEHTA | Aillen | CAP. ALUM 10UF 50V 20% SMD | 64% | View |
