Panasonic Electronic Components
CAP ALUM 10UF 20% 25V SMD

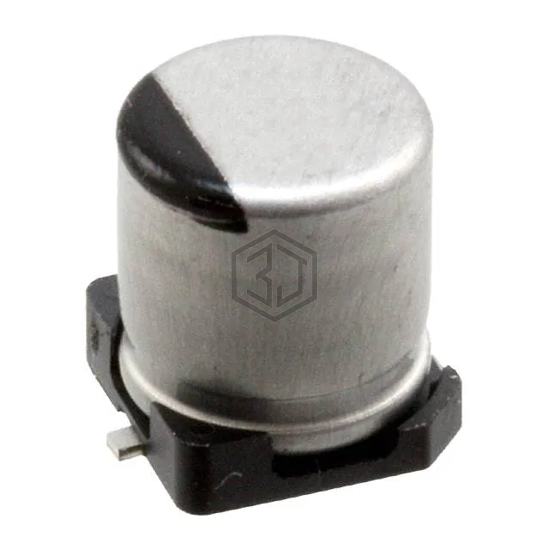

EEE-HD1E100AR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,441
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.6 mA @ 10 kHz |
| Impedance | 7.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDH106M035S9DAA | KEMET | CAP ALUM 10UF 20% 35V SMD | 82% | View |
| EDH106M016A9BAA | KEMET | CAP ALUM 10UF 20% 16V SMD | 79% | View |
| BMVK160ADA100ME60G | United Chemi-Con | CAP ALUM 10UF 20% 16V SMD | 71% | View |
| UUB1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 69% | View |
| EEE-FN1E100R | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V SMD | 67% | View |
| EMLA250ADA100ME61G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 66% | View |
