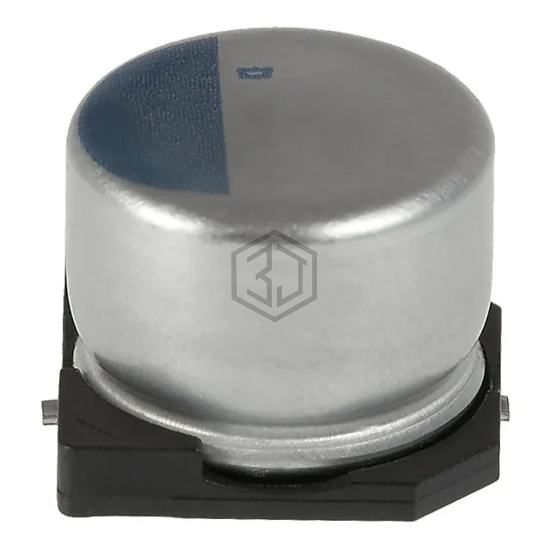

CAP ALUM POLY 1000UF 2.5V SMD
APXH2R5ARA102MJ80G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 1000UF 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 2,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1A102MCL1GS | Nichicon | CAP ALUM POLY 1000UF 20% 10V SMD | 71% | View |
| PCR0J102MCL1GS | Nichicon | CAP ALUM POLY 1000UF 6.3V SMD | 71% | View |
| MAL218697305E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 1000UF 6.3V SMD | 66% | View |
| A768MS108M1CLAS015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
| A768MS108M1CLAV015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
| A768MS108M1CLAE015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
Submit your RFQ for APXH2R5ARA102MJ80G and get a quote within 24 hours.
