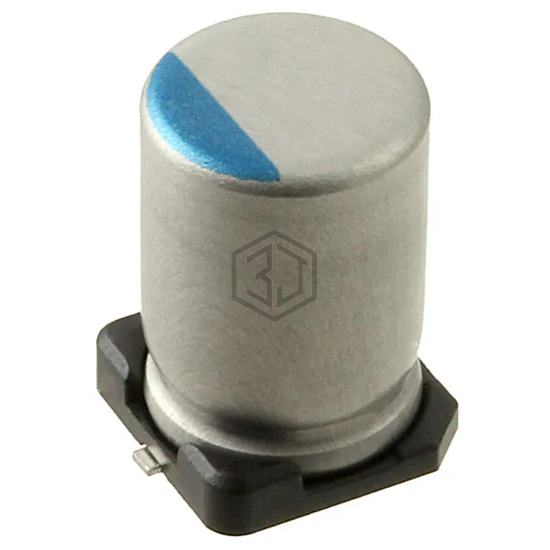

CAP ALUM POLY 1000UF 6.3V SMD
PCR0J102MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1000UF 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,962
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR0J102MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218697305E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 1000UF 6.3V SMD | 94% | View |
| PCW0J102MCO1GS | Nichicon | 6.3V 1000F POLYMER CHIP SURFACE | 87% | View |
| APXH2R5ARA102MJ80G | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V SMD | 71% | View |
| A768MS108M1CLAS015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
| A768MS108M1CLAV015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
| A768MS108M1CLAE015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 61% | View |
Submit your RFQ for PCR0J102MCL1GS and get a quote within 24 hours.
