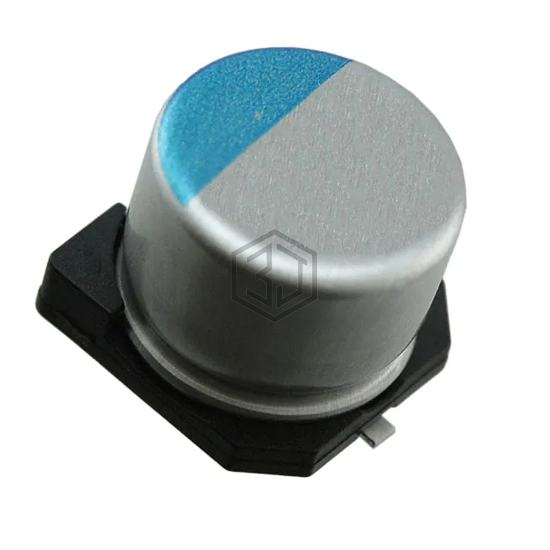

CAP ALUM POLY 220UF 20% 25V SMD
APXG250ARA221MJA0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXJ200ARA221MH70G | United Chemi-Con | CAP ALUM POLYM 220UF 20% 20V SMD | 86% | View |
| PCF1C221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 16V SMD | 81% | View |
| VSP0J221MCB5057 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 69% | View |
| PCS0J221MCL9GS | Nichicon | CAP ALUM POLY 220UF 20% 6.3V SMD | 66% | View |
| 6SVPC220MV | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 65% | View |
| 875105144008 | Würth Elektronik | CAP ALUM POLY 220UF 20% 6.3V SMD | 64% | View |
