CAP ALUM POLY 220UF 20% 6.3V SMD

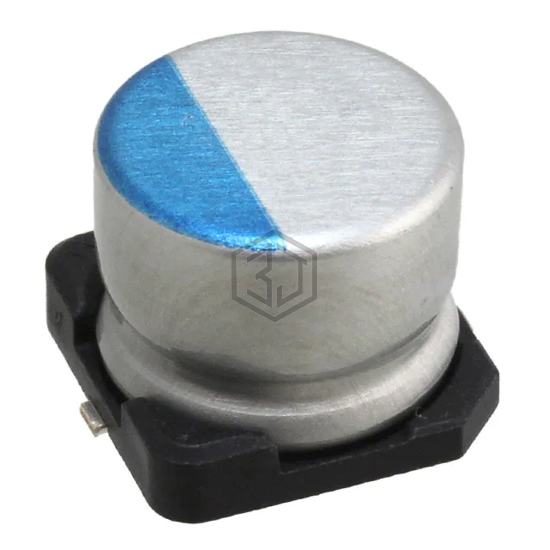

PCS0J221MCL9GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 4,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6SVPC220MV | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 100% | View |
| 875105144008 | Würth Elektronik | CAP ALUM POLY 220UF 20% 6.3V SMD | 98% | View |
| VSP0J221MCB5057 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 97% | View |
| A765BG227M0JLAE020 | KEMET | CAP ALUM POLY 220UF 20% 6.3V SMD | 94% | View |
| 875075155002 | Würth Elektronik | CAP ALUM POLY 220UF 20% 6.3V SMD | 84% | View |
| APXJ200ARA221MH70G | United Chemi-Con | CAP ALUM POLYM 220UF 20% 20V SMD | 70% | View |
