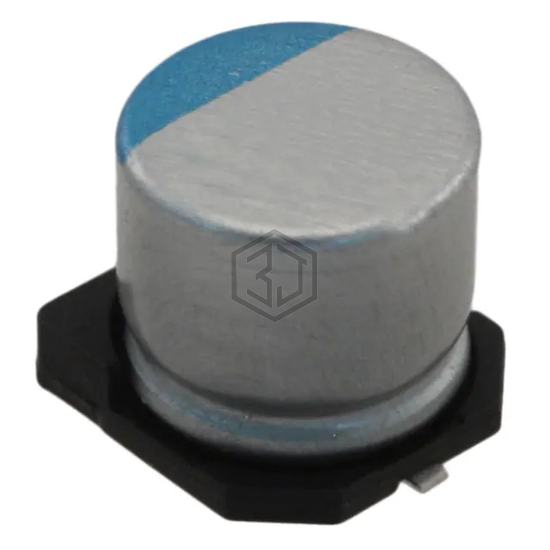

CAP ALUM POLY 390UF 20% 2.5V SMD
APXF2R5ARA391ME61G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 390UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 4,432
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RSA0E391MCN1GS | Nichicon | CAP ALUM POLY 390UF 20% 2.5V SMD | 93% | View |
| MAL218097253E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 390UF 20% 2.5V SMD | 93% | View |
| APXF4R0ARA391MF80G | United Chemi-Con | CAP ALUM POLY 390UF 20% 4V SMD | 78% | View |
| PCJ0J391MCL1GS | Nichicon | CAP ALUM POLY 390UF 20% 6.3V SMD | 71% | View |
| APXJ100ARA391MFA0G | United Chemi-Con | CAP ALUM POLY 390UF 20% 10V SMD | 71% | View |
| APXJ6R3ARA391MF61G | United Chemi-Con | CAP ALUM POLY 390UF 20% 6.3V SMD | 64% | View |
Submit your RFQ for APXF2R5ARA391ME61G and get a quote within 24 hours.
