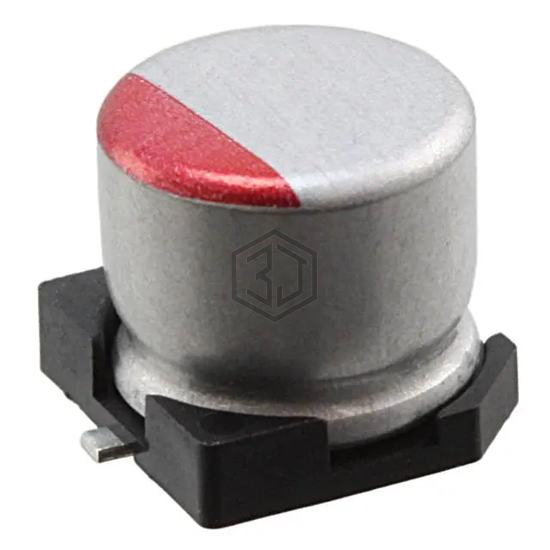

CAP ALUM POLY 390UF 20% 2.5V SMD
RSA0E391MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 390UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 6,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 316 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218097253E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 390UF 20% 2.5V SMD | 100% | View |
| APXF2R5ARA391ME61G | United Chemi-Con | CAP ALUM POLY 390UF 20% 2.5V SMD | 93% | View |
| RSA0G391MCN1GS | Nichicon | CAP ALUM POLY 390UF 20% 4V SMD | 86% | View |
| APXE4R0ARA391MF80G | United Chemi-Con | CAP ALUM POLY 390UF 20% 4V SMD | 78% | View |
| APXF4R0ARA391MF80G | United Chemi-Con | CAP ALUM POLY 390UF 20% 4V SMD | 71% | View |
| 875075155005 | Würth Elektronik | CAP ALUM POLY 390UF 20% 6.3V SMD | 62% | View |
Submit your RFQ for RSA0E391MCN1GS and get a quote within 24 hours.
