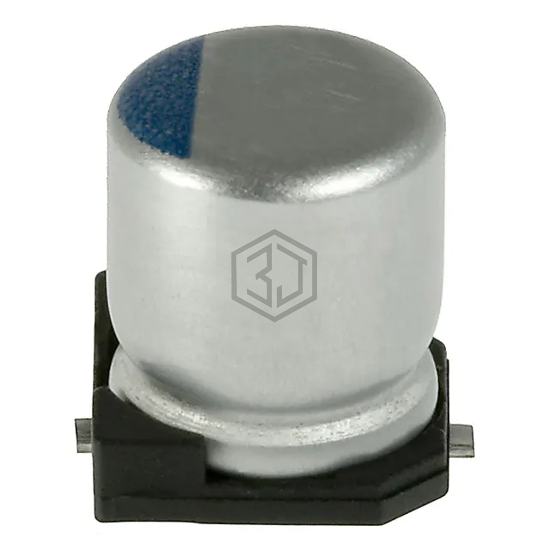

CAP ALUM POLY 180UF 20% 2.5V SMD
APXC2R5ARA181ME60G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 180UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 8,582
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXC2R5ARA181ME60G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RFS0E181MCN1GS | Nichicon | CAP ALUM POLY 180UF 20% 2.5V SMD | 91% | View |
| 875105244012 | Würth Elektronik | CAP ALUM POLY 180UF 20% 10V SMD | 71% | View |
| PCX1D181MCL1GS | Nichicon | CAP ALUM POLY 180UF 20% 20V SMD | 67% | View |
| 25SVF180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 25V SMD | 61% | View |
| MAL218597402E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 10V SMD | 59% | View |
| APXH160ARA181MJ80G | United Chemi-Con | CAP ALUM POLY 180UF 20% 16V SMD | 58% | View |
Submit your RFQ for APXC2R5ARA181ME60G and get a quote within 24 hours.
