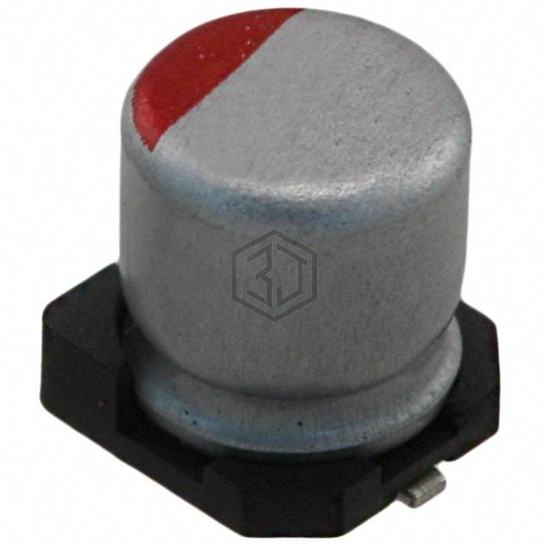

CAP ALUM POLY 180UF 20% 2.5V SMD
RFS0E181MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 180UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 9,611
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 21mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 267 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218097251E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 2.5V SMD | 98% | View |
| APXH160ARA181MJ80G | United Chemi-Con | CAP ALUM POLY 180UF 20% 16V SMD | 67% | View |
| PCX1D181MCL1GS | Nichicon | CAP ALUM POLY 180UF 20% 20V SMD | 67% | View |
| PCR1H181MCL1GS | Nichicon | CAP ALUM POLY 180UF 20% 50V SMD | 63% | View |
| MAL218597507E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 16V SMD | 62% | View |
| MAL218597611E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 180UF 20% 25V SMD | 62% | View |
