CAP ALUM POLY 39UF 20% 16V SMD

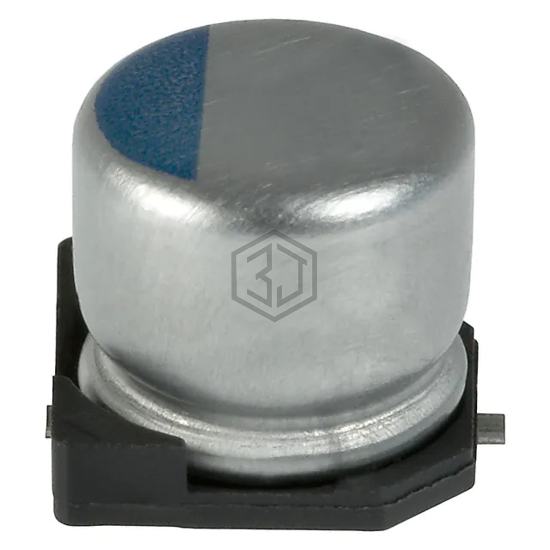

APXA160ARA390MF55G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 39UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,407
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 37mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXA160ARA390MF55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218197501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 39UF 20% 16V SMD | 98% | View |
| MAL218097501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 39UF 20% 16V SMD | 96% | View |
| 875105545005 | Würth Elektronik | CAP ALUM POLY 39UF 20% 25V SMD | 73% | View |
| PCV1H390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 50V SMD | 71% | View |
| PCV1V390MCL2GS | Nichicon | CAP ALUM POLY 39UF 20% 35V SMD | 59% | View |
| 50SVF39M | Panasonic Electronic Components | CAP ALUM POLY 39UF 20% 50V SMD | 54% | View |
