Panasonic Electronic Components
CAP ALUM POLY 39UF 20% 50V SMD

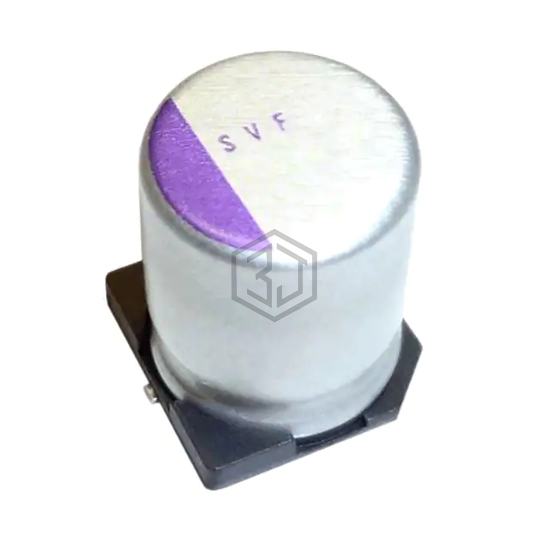

50SVF39M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 39UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,552
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768EB396M1GLAE045 | KEMET | CAP ALUM POLY 39UF 20% 40V SMD | 91% | View |
| 35SVF39M | Panasonic Electronic Components | CAP ALUM POLY 39UF 20% 35V SMD | 74% | View |
| A768KS396M1KLAE038 | KEMET | CAP ALUM POLY 39UF 20% 80V SMD | 72% | View |
| PCR1K390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 80V SMD | 71% | View |
| PCR1J390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 63V SMD | 64% | View |
| APXH160ARA390MF60G | United Chemi-Con | CAP ALUM POLY 39UF 20% 16V SMD | 54% | View |
Submit your RFQ for 50SVF39M and get a quote within 24 hours.
