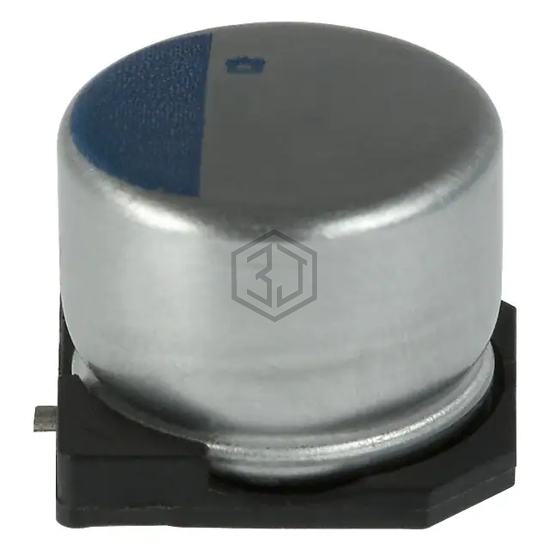

CAP ALUM POLY 10UF 20% 10V SMD
APXA100ARA100MD55G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 10UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 7,471
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 220mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXA100ARA100MD55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 94SVP106X0010A5 | Vishay Sprague | CAP ALUM POLY 10UF 20% 10V SMD | 99% | View |
| 875105240001 | Würth Elektronik | CAP ALUM POLY 10UF 20% 10V SMD | 82% | View |
| 50SVF10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 50V SMD | 68% | View |
| PCX1V100MCL1GS | Nichicon | CAP ALUM POLY 10UF 20% 35V SMD | 67% | View |
| 50SVPK10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 50V SMD | 64% | View |
| MAL218697001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 10UF 20% 35V SMD | 60% | View |
Submit your RFQ for APXA100ARA100MD55G and get a quote within 24 hours.
