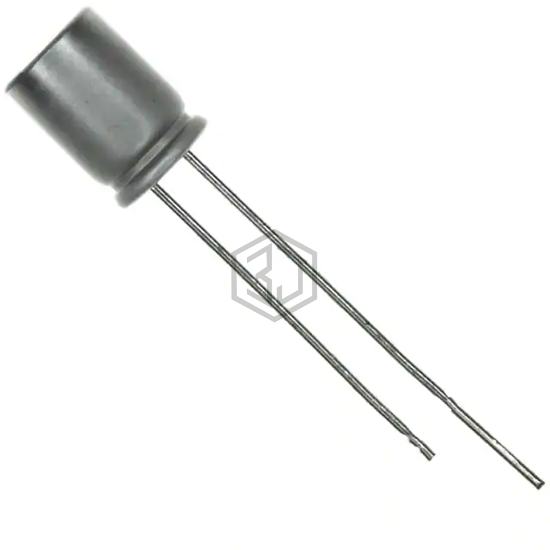

CAP ALUM POLY 680UF 20% 2.5V T/H
APSE2R5ELL681MH06S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 680UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 6,867
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
APSE2R5ELL681MH06S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0E681MCO6TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 99% | View |
| 2R5SEP680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V T/H | 97% | View |
| UPC1C681MNN0811F3 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 71% | View |
| A750MW687M1VAAE018 | KEMET | CAP ALUM POLY 680UF 20% 35V T/H | 70% | View |
| RHT0J681MDN1PH | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 68% | View |
| 687ULR010MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 680UF 20% 10V T/H | 66% | View |
Submit your RFQ for APSE2R5ELL681MH06S and get a quote within 24 hours.
