Panasonic Electronic Components

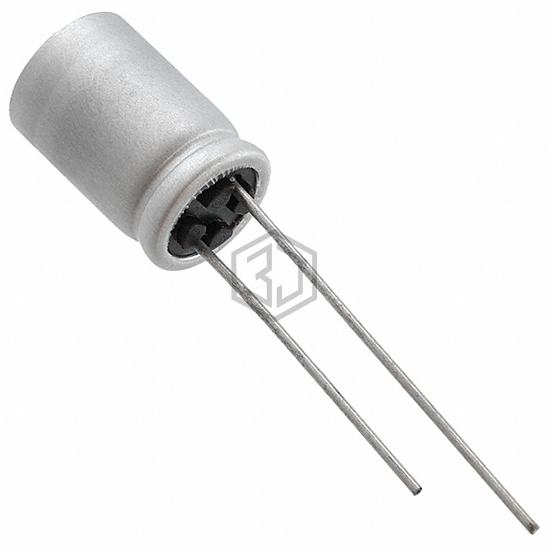

CAP ALUM POLY 680UF 20% 2.5V T/H
2R5SEP680M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 680UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 190
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 226 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.52 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0E681MCO6TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 98% | View |
| APSA2R5ELL681MHB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 2.5V T/H | 93% | View |
| A750MW687M1VAAE018 | KEMET | CAP ALUM POLY 680UF 20% 35V T/H | 77% | View |
| A750EQ687M1AAAE015 | KEMET | CAP ALUM POLY 680UF 20% 10V T/H | 68% | View |
| UGS1C681MP26316S | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 67% | View |
| 687ULR010MFH | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 680UF 20% 10V T/H | 67% | View |
Submit your RFQ for 2R5SEP680M and get a quote within 24 hours.
