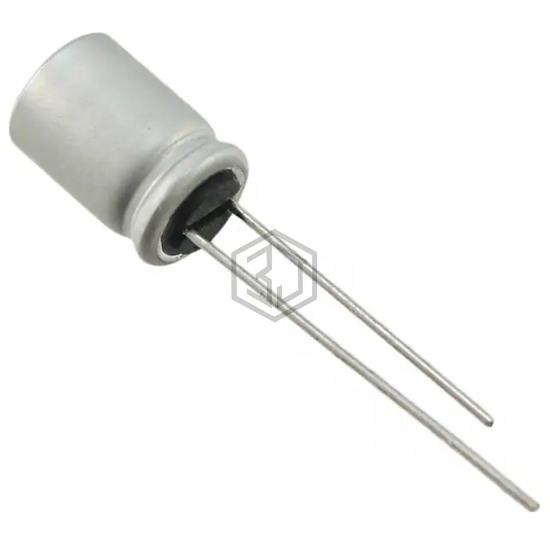

CAP ALUM POLY 390UF 20% 6.3V T/H
6PS390MH11 is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 390UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,761
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.77 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
6PS390MH11 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR70J391MDN1PX | Nichicon | CAP ALUM POLY 390UF 20% 6.3V T/H | 95% | View |
| 397ULR6R3MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 390UF 20% 6.3V T/H | 94% | View |
| A758EK397M0JAAE016 | KEMET | CAP ALUM POLY 390UF 20% 6.3V T/H | 86% | View |
| 20SEPF390M+TSS | Panasonic Electronic Components | CAP ALUM POLY 390UF 20% 20V T/H | 70% | View |
| RNU1D391MDN1PX | Nichicon | CAP ALUM POLY 390UF 20% 20V T/H | 70% | View |
| UGV1E391MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
