Panasonic Electronic Components

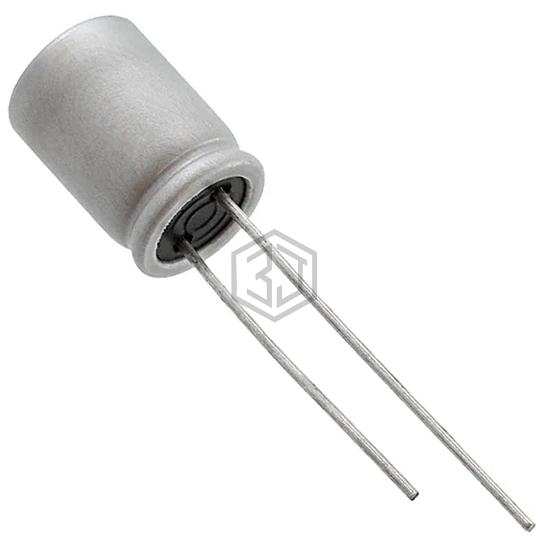

CAP ALUM POLY 390UF 20% 20V T/H
20SEPF390M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 390UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 4,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 247.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.95 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UGV1E391MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 90% | View |
| A750EQ397M1CAAE015 | KEMET | CAP ALUM POLY 390UF 20% 16V T/H | 78% | View |
| RNU1E391MDN1PH | Nichicon | CAP ALUM POLY 390UF 20% 25V T/H | 76% | View |
| 397ULR6R3MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 390UF 20% 6.3V T/H | 72% | View |
| 2SEPC390M+TSS | Panasonic Electronic Components | CAP ALUM POLY 390UF 20% 2.5V T/H | 68% | View |
| PLF0E391MDL4TD | Nichicon | CAP ALUM POLY 390UF 20% 2.5V T/H | 57% | View |
Submit your RFQ for 20SEPF390M+TSS and get a quote within 24 hours.
