INDUCT ARRAY 2 COIL 6.8UH SMD

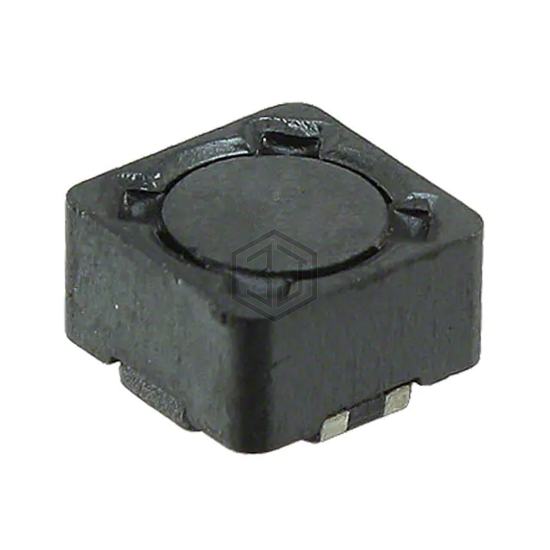

HM78D-7556R8MLFTR is a Arrays, Signal Transformers manufactured by TT Electronics/BI Magnetics. INDUCT ARRAY 2 COIL 6.8UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.303" L x 0.303" W (7.70mm x 7.70mm).
In Stock: 985
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 6.8 µH |
| Inductance - Connected In Series | 29.38 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.6 A |
| Current Rating - Series | 1.3 A |
| Current Saturation - Parallel | 3.67 A |
| Current Saturation - Series | 1.84 A |
| DC Resistance (DCR) - Parallel | 41.8mOhm |
| DC Resistance (DCR) - Series | 167mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.303" L x 0.303" W (7.70mm x 7.70mm) |
| Height | 0.189" (4.80mm) |
Submit your RFQ for HM78D-7556R8MLFTR and get a quote within 24 hours.
