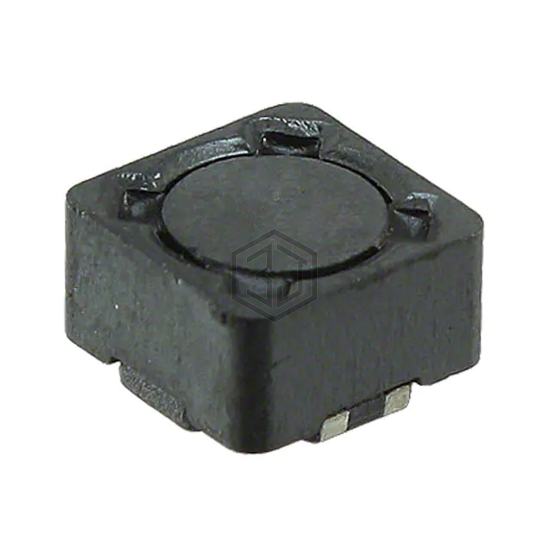

INDUCT ARRAY 2 COIL 1.5UH SMD
HM78D-7551R5MLFTR is a Arrays, Signal Transformers manufactured by TT Electronics/BI Magnetics. INDUCT ARRAY 2 COIL 1.5UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.303" L x 0.303" W (7.70mm x 7.70mm).
In Stock: 729
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 1.5 µH |
| Inductance - Connected In Series | 5.688 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 4.96 A |
| Current Rating - Series | 2.48 A |
| Current Saturation - Parallel | 8.35 A |
| Current Saturation - Series | 4.17 A |
| DC Resistance (DCR) - Parallel | 11.5mOhm |
| DC Resistance (DCR) - Series | 46.1mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.303" L x 0.303" W (7.70mm x 7.70mm) |
| Height | 0.189" (4.80mm) |
