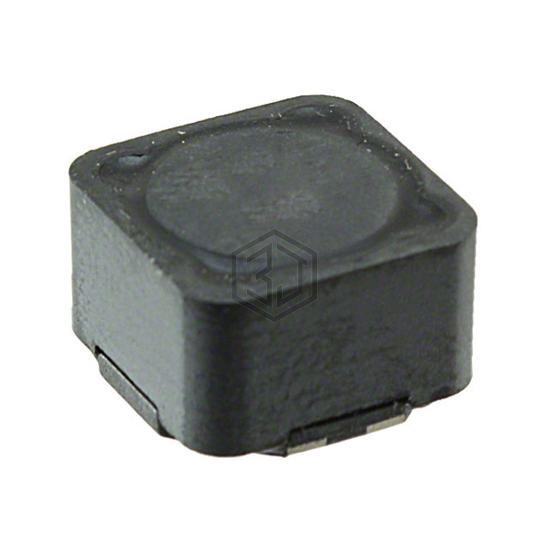

INDUCT ARRAY 2 COIL 150UH SMD
HM78D-128151KLFTR is a Arrays, Signal Transformers manufactured by TT Electronics/BI Magnetics. INDUCT ARRAY 2 COIL 150UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 471
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 150 µH |
| Inductance - Connected In Series | 600 µH |
| Tolerance | ±10% |
| Current Rating - Parallel | 1.8 A |
| Current Rating - Series | 890 mA |
| Current Saturation - Parallel | 2.8 A |
| Current Saturation - Series | 1.4 A |
| DC Resistance (DCR) - Parallel | 230mOhm |
| DC Resistance (DCR) - Series | 920mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.317" (8.05mm) |
Submit your RFQ for HM78D-128151KLFTR and get a quote within 24 hours.
