Toshiba Semiconductor and Storage
IC PWR SWITCH N-CHAN 1:1 9WCSP

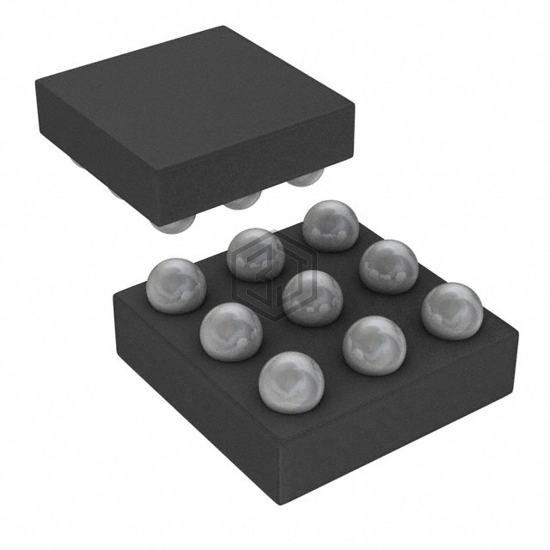

TCK305G,LF is a PMIC - Power Distribution Switches, Load Drivers manufactured by Toshiba Semiconductor and Storage. IC PWR SWITCH N-CHAN 1:1 9WCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 9-UFBGA, WLCSP.
In Stock: 8,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.3V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 73mOhm |
| Input Type | - |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 9-WCSP (1.5x1.5) |
| Package / Case | 9-UFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP5002DQ-LF-Z | Monolithic Power Systems Inc. | IC PWR SWITCH N-CHAN 1:1 10QFN | 99% | View |
| MIC2549A-2BTS | Microchip Technology | PROGRAMMABLE HIGH-SIDE SWITCH | 97% | View |
| MIC2545A-1BTS-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 14TSSOP | 97% | View |
| MIC2042-1YM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 8SOIC | 94% | View |
| MIC2042-1YTS | Microchip Technology | SINGLE CHANNEL, HIGH CURRENT, LO | 81% | View |
| BTS710404ESAXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:1 TSDSO-24 | 58% | View |
Submit your RFQ for TCK305G,LF and get a quote within 24 hours.
