Toshiba Semiconductor and Storage

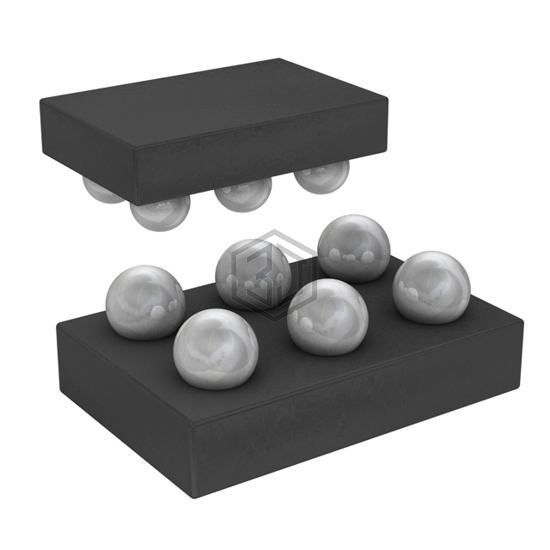

IC PWR SWITCH P-CHAN 1:1 WCSP6E
TCK22946G,LF is a PMIC - Power Distribution Switches, Load Drivers manufactured by Toshiba Semiconductor and Storage. IC PWR SWITCH P-CHAN 1:1 WCSP6E. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UFBGA, WLCSP.
In Stock: 378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 400mA |
| Rds On (Typ) | 31mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WCSPE (0.80x1.2) |
| Package / Case | 6-UFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| XC8102AA017R-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CHAN 1:1 4USPN | 98% | View |
| XC6192A5NNER-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CH 1:1 8USP-B06 | 85% | View |
| XC6192BANNER-G | Torex Semiconductor Ltd | IC PWR SWTCH P-CHAN 1:1 USP-8B06 | 85% | View |
| XC6192A110ER-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CH 1:1 8USP-B06 | 85% | View |
| XC6192B115ER-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CH 1:1 8USP-B06 | 85% | View |
| XC6192B305ER-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CH 1:1 8USP-B06 | 85% | View |
Submit your RFQ for TCK22946G,LF and get a quote within 24 hours.
