Toshiba Semiconductor and Storage

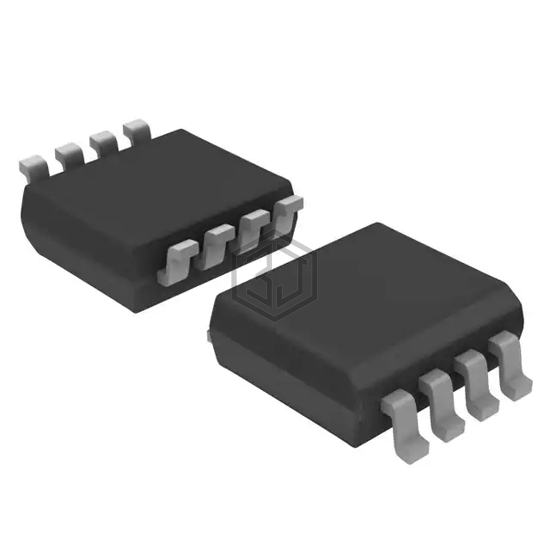

IC GATE NOR 2CH 2-INP US8
TC7WH02FK(TE85L) is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NOR 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 5,914
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
TC7WH02FK(TE85L) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLVVHC1G02DFT2G | onsemi | IC GATE NOR 1CH 2-INP SC88A | 91% | View |
| SN74AHCT02PW | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 86% | View |
| SN74AHCT02DGVR | Texas Instruments | IC GATE NOR 4CH 2-INP 14TVSOP | 86% | View |
| SN74AHCT02PWR | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 86% | View |
| 74VHCT02BQ-Q100X | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14DHVQFN | 86% | View |
| 74AHCT1G02W5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-INP SOT25 | 82% | View |
Submit your RFQ for TC7WH02FK(TE85L) and get a quote within 24 hours.
