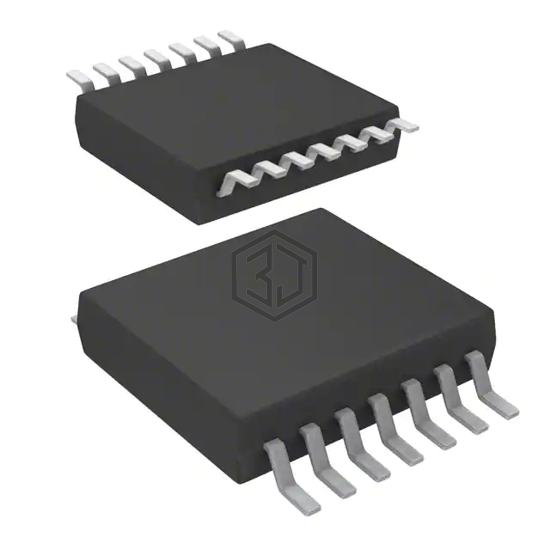

IC GATE NOR 4CH 2-INP 14TVSOP
SN74AHCT02DGVR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 4CH 2-INP 14TVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 14-TFSOP (0.173", 4.40mm Width).
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TVSOP |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74VHCT02D-Q100J | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14SO | 100% | View |
| SN74AHCT02PW | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 100% | View |
| MC74VHCT02ADR2 | onsemi | IC GATE NOR 4CH 2-INP 14SOIC | 100% | View |
| 74VHCT02BQ-Q100X | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14DHVQFN | 100% | View |
| 74AHCT1G02W5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-INP SOT25 | 87% | View |
| NLVVHC1G02DFT1G | onsemi | IC GATE NOR 1CH 2-INP SC88A | 72% | View |
