Toshiba Semiconductor and Storage

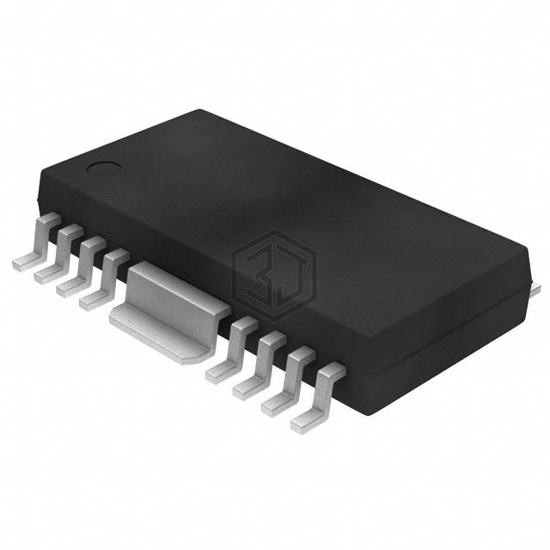

IC MOTOR DRIVER 10V-30V 16HSOP
TB6559FG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-30V 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply 10V ~ 30V, package / case 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs.
In Stock: 1,793
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | NMOS, PMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 10V ~ 30V |
| Voltage - Load | 10V ~ 30V |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 16-HSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV8735V-TLM-H | onsemi | IC MTR DRV BIPOLAR 0-5.5V 44SSOP | 97% | View |
| LV8735V-MPB-H | onsemi | IC MTR DRV BIPOLAR 0-5.5V 44SSOP | 97% | View |
| LV8736V-TLM-H | onsemi | IC MTR DRV BIPOLAR 0-5.5V 44SSOP | 97% | View |
| DRV8884PWPR | Texas Instruments | IC MTR DRV BIPLR 0-5.3V 24HTSSOP | 94% | View |
| DRV8804PWPR | Texas Instruments | IC MTR DRV UNIPLR 8.20V 16HTSSOP | 93% | View |
| AM4964GTR-G1 | Diodes Incorporated | IC MOTOR DRIVER 3.5V-16V 20TSSOP | 63% | View |
Submit your RFQ for TB6559FG,8,EL and get a quote within 24 hours.
