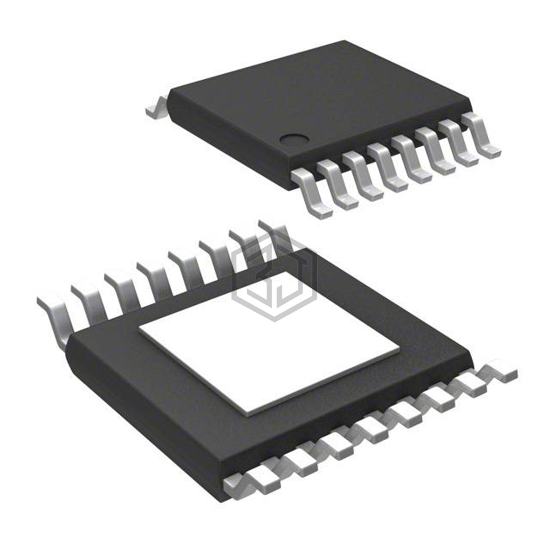

IC MTR DRV UNIPLR 8.20V 16HTSSOP
DRV8804PWPR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MTR DRV UNIPLR 8.20V 16HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 8.2V ~ 60V, package / case 16-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 3,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (4) |
| Interface | SPI |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 8.2V ~ 60V |
| Voltage - Load | 8.2V ~ 60V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8803PWP | Texas Instruments | IC MTR DRV UNIPLR 8.20V 16HTSSOP | 100% | View |
| DRV8805PWP | Texas Instruments | IC MTR DRV UNIPLR 8.20V 16HTSSOP | 100% | View |
| DRV8884PWPR | Texas Instruments | IC MTR DRV BIPLR 0-5.3V 24HTSSOP | 99% | View |
| DRV8885PWPR | Texas Instruments | IC MTR DRV BIPLR 0-5.3V 24HTSSOP | 99% | View |
| DRV8830DGQ | Texas Instruments | IC MTR DRV BIPLR 2.75-6.8V 10SOP | 61% | View |
| DRV8832DGQR | Texas Instruments | IC MTR DRV BIPLR 2.75-6.8V 10SOP | 61% | View |
Submit your RFQ for DRV8804PWPR and get a quote within 24 hours.
