Toshiba Semiconductor and Storage
IC MOTOR DRIVER BIPLR 25V 25HZIP

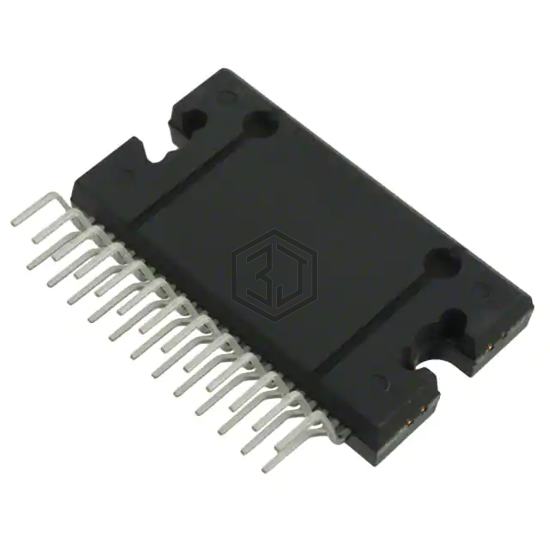

TB62215AHQ is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER BIPLR 25V 25HZIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 25-SIP Formed Leads.
In Stock: 9,095
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 25-SIP Formed Leads |
| Supplier Device Package | 25-HZIP |
TB62215AHQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A3959SB | Allegro MicroSystems | IC MOTOR DRIVER 4.5V-5.5V 24DIP | 98% | View |
| SLA7083MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| SLA7073MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| SLA7073MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| LMD18200T/NOPB | Texas Instruments | IC MTR DRV BIPLR 12-55V TO220-11 | 80% | View |
| LMD18201T/NOPB | Texas Instruments | IC MTR DRV BIPLR 12-55V TO220-11 | 80% | View |
Submit your RFQ for TB62215AHQ and get a quote within 24 hours.
