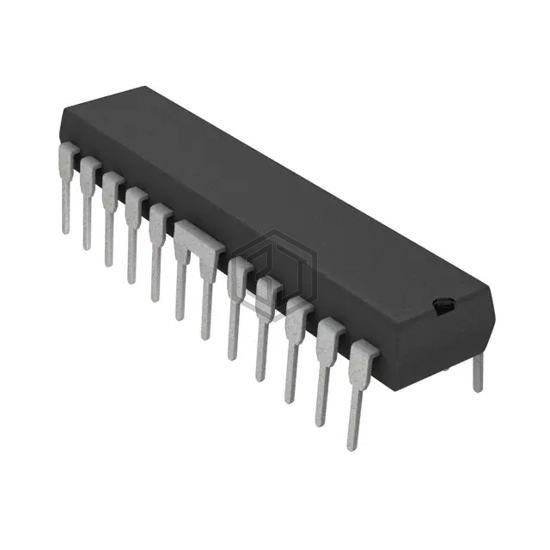

IC MOTOR DRIVER 4.5V-5.5V 24DIP
A3959SB is a PMIC - Motor Drivers, Controllers manufactured by Allegro MicroSystems. IC MOTOR DRIVER 4.5V-5.5V 24DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 24-PowerDIP (0.300", 7.62mm).
In Stock: 8,261
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 9.5V ~ 50V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 24-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-DIP |
A3959SB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A3959SB-T | Allegro MicroSystems | IC MOTOR DRIVER 4.5V-5.5V 24DIP | 100% | View |
| TB62215AHQ,8 | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPLR 25V 25HZIP | 98% | View |
| TB62215AHQ | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPLR 25V 25HZIP | 98% | View |
| SLA7083MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| LMD18200T/NOPB | Texas Instruments | IC MTR DRV BIPLR 12-55V TO220-11 | 78% | View |
| LMD18201T/NOPB | Texas Instruments | IC MTR DRV BIPLR 12-55V TO220-11 | 78% | View |
Submit your RFQ for A3959SB and get a quote within 24 hours.
