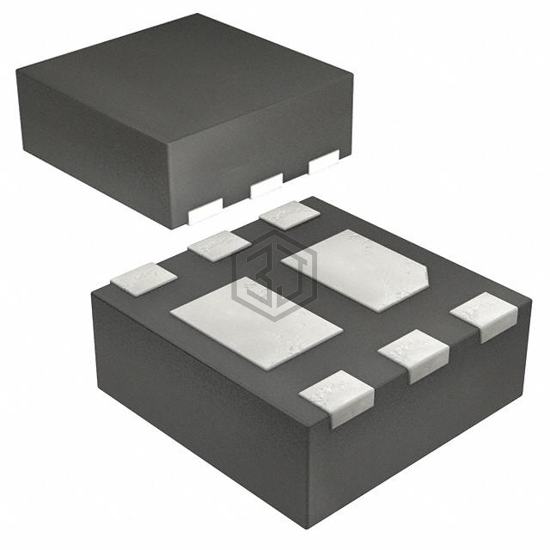

Toshiba Semiconductor and Storage
SMALL LOW RON DUAL NCH MOSFETS I
SSM6N67NU,LF is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. SMALL LOW RON DUAL NCH MOSFETS I. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-WDFN Exposed Pad, power - max 2W (Ta).
In Stock: 7,416
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 1.8V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 39.1mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 310pF @ 15V |
| Power - Max | 2W (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-µDFN (2x2) |
Submit your RFQ for SSM6N67NU,LF and get a quote within 24 hours.
