Toshiba Semiconductor and Storage
SMALL SIGNAL MOSFET N-CHX2 VDSS3

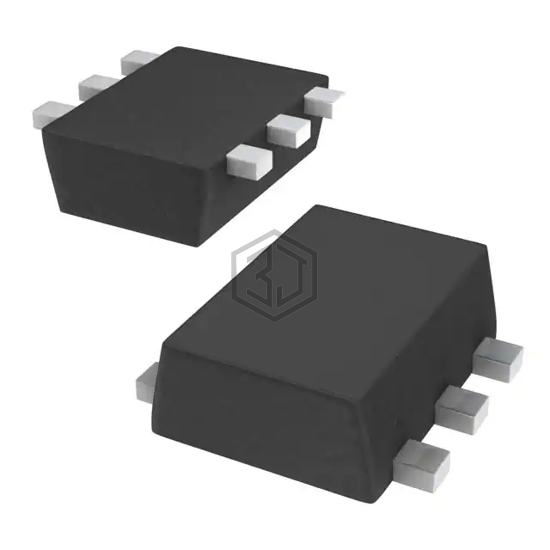

SSM6N40TU,LF is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. SMALL SIGNAL MOSFET N-CHX2 VDSS3. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads, power - max 500mW (Ta).
In Stock: 5,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 4V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Ta) |
| Rds On (Max) @ Id, Vgs | 122mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 15V |
| Power - Max | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | UF6 |
Submit your RFQ for SSM6N40TU,LF and get a quote within 24 hours.
