IC GATE DRVR HALF-BRIDGE 20QFN

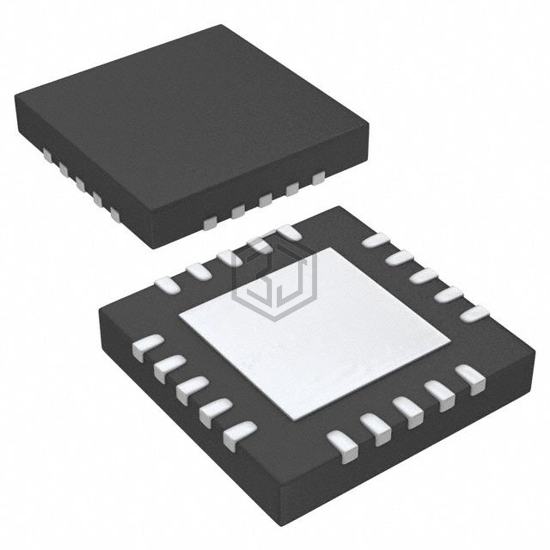

UCD7232RTJT is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.7V ~ 15V, package / case 20-WFQFN Exposed Pad.
In Stock: 7,093
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.7V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 27ns, 21ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCD7232RTJR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 20QFN | 100% | View |
| ADUM4221-1BRIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W PWM UVLO 7. | 83% | View |
| ADUM4221CRIZ | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W/DEADTIME UV | 83% | View |
| ADUM4221-1CRIZ | Analog Devices Inc. | ISO 1/2 BRIDGE DRV WPWM UVLO 11. | 83% | View |
| ADUM4221BRIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W/DEADTIME UV | 83% | View |
| ADUM4221-1ARIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W PWM UVLO 4. | 83% | View |
Submit your RFQ for UCD7232RTJT and get a quote within 24 hours.
