ISO 1/2 BRIDGE DRV W/DEADTIME UV

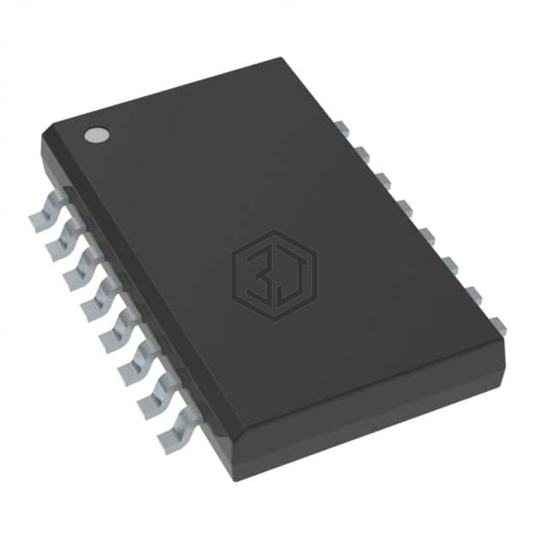

ADUM4221CRIZ is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. ISO 1/2 BRIDGE DRV W/DEADTIME UV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 2.5V ~ 6.5V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 2,281
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 2.5V ~ 6.5V |
| Logic Voltage - VIL, VIH | 1.5V, 3.5V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 25ns, 30ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADUM4221-1BRIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W PWM UVLO 7. | 100% | View |
| ADUM4221-1ARIZ | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W PWM UVLO 4. | 100% | View |
| ADUM4221-1CRIZ | Analog Devices Inc. | ISO 1/2 BRIDGE DRV WPWM UVLO 11. | 100% | View |
| ADUM4221BRIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W/DEADTIME UV | 100% | View |
| ADUM4221-1ARIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W PWM UVLO 4. | 100% | View |
| ADUM4221CRIZ-RL | Analog Devices Inc. | ISO 1/2 BRIDGE DRV W/DEADTIME UV | 100% | View |
Submit your RFQ for ADUM4221CRIZ and get a quote within 24 hours.
