IC BRIDGE DRIVER PAR 28PLCC

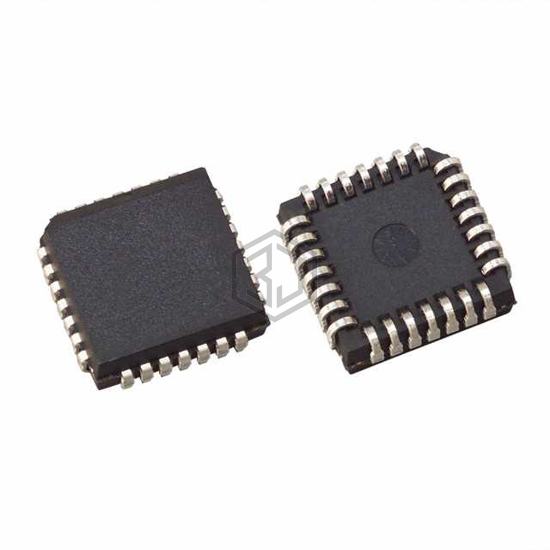

UC3770AQTR is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. IC BRIDGE DRIVER PAR 28PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.3V, package / case 28-LCC (J-Lead).
In Stock: 5,139
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | General Purpose, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bipolar |
| Rds On (Typ) | - |
| Current - Output / Channel | 2A |
| Current - Peak Output | - |
| Voltage - Supply | 4.75V ~ 5.3V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
UC3770AQTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| P67001EXG8 | Renesas Electronics America Inc | IC MOSFET DVR 1PH VR12 8SOIC | 98% | View |
| FAD8253MX-1 | onsemi | 1200V 2.5A HALF-BRIDGE GATE DRIV | 89% | View |
| FAD6263M1X | onsemi | IC GATE DRIVER 600V 3A 16SOIC | 71% | View |
| NJW4814MLE-TE1 | Nisshinbo Micro Devices Inc. | DUAL H-BRIDGE DRIVER WITH BOOST | 67% | View |
| NCP51530BMNTWG | onsemi | IC BRIDGE DVR 700V 10DFN | 58% | View |
| NCP51530AMNTWG | onsemi | IC BRIDGE DVR 700V 10DFN | 58% | View |
Submit your RFQ for UC3770AQTR and get a quote within 24 hours.
