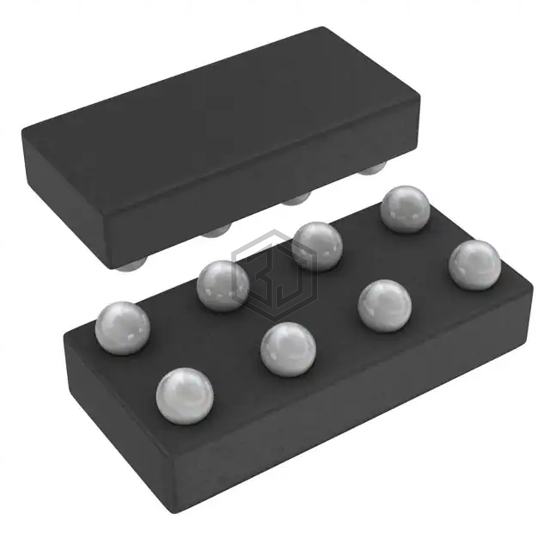

IC SWITCH DUAL SPST 8DSBGA
TS5A23166YZTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPST 8DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, DSBGA, number of circuits 2.
In Stock: 3,021
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 900mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 7.5ns, 11ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 18pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS5A23167YZPR | Texas Instruments | IC SWITCH DUAL SPST 8DSBGA | 100% | View |
| TS5A23167DCUR | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 100% | View |
| TS5A23166DCUR | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 100% | View |
| TS5A3167YZPR | Texas Instruments | IC SWITCH SPST 5DSBGA | 94% | View |
| ADG749BKS-R2 | Analog Devices Inc. | MULTIPLEXERS/SWITCHES,CMOS | 63% | View |
| SN74LVC1G66QDCKRQ1 | Texas Instruments | IC SWITCH 1X1 SC70-5 | 50% | View |
Submit your RFQ for TS5A23166YZTR and get a quote within 24 hours.
