MULTIPLEXERS/SWITCHES,CMOS

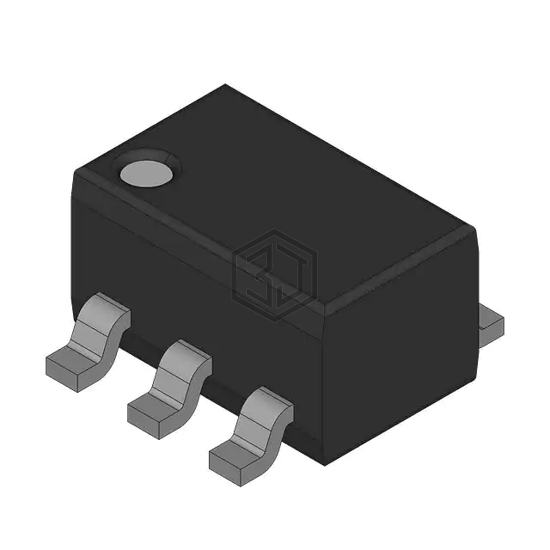

ADG749BKS-R2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. MULTIPLEXERS/SWITCHES,CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 1,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 7ns (Typ), 3ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG719BRMZ | Analog Devices Inc. | IC SWITCH SPDT 8MSOP | 100% | View |
| ADG749BKSZ-REEL7 | Analog Devices Inc. | IC SWITCH SPDT SC70-6 | 100% | View |
| ADG719SRJZ-EP-R2 | Analog Devices Inc. | IC SWITCH SPDT 5 OHM SOT23-6 | 100% | View |
| TS5A3166QDCKRQ1 | Texas Instruments | IC SWITCH SPST SINGLE SC70-5 | 78% | View |
| 1P1G66QDBVRG4Q1 | Texas Instruments | IC SWITCH 1X1 SOT23-5 | 72% | View |
| 1P1G66QDBVRQ1 | Texas Instruments | IC SWITCH 1X1 SOT23-5 | 72% | View |
Submit your RFQ for ADG749BKS-R2 and get a quote within 24 hours.
