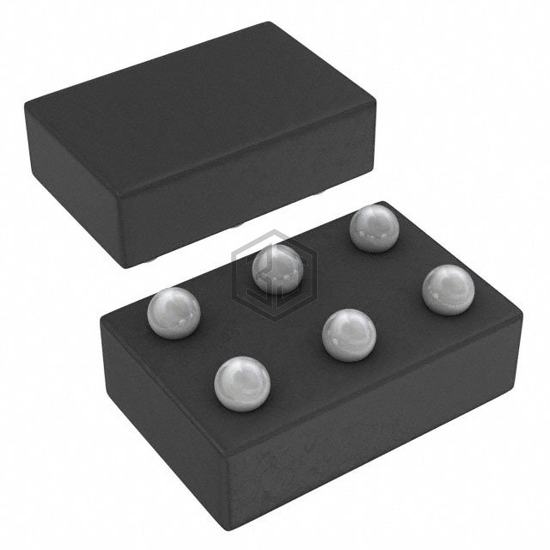

IC SWITCH SPDT 6DSBGA
TS5A12301EYFPR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-XFBGA, DSBGA, number of circuits 1.
In Stock: 1,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 2.25V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 225ns, 215ns |
| -3db Bandwidth | 55MHz |
| Charge Injection | 97pC |
| Channel Capacitance (CS(off), CD(off)) | 28pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -63dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX7209PWR | Texas Instruments | 44-V, LATCH-UP IMMUNE, 4:1, TWO- | 68% | View |
| TMUX7209RUMR | Texas Instruments | IC MULTIPLEXER | 67% | View |
| TMUX7208RUMR | Texas Instruments | IC MULTIPLEXER | 59% | View |
| TMUX7208PWR | Texas Instruments | 44-V, LATCH-UP IMMUNE, 8:1 PRECI | 59% | View |
| ADG5206BCPZ-RL7 | Analog Devices Inc. | IC MUX 1 X 16:1 32LFCSP | 57% | View |
| MAX4581LEEE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16QSOP | 57% | View |
Submit your RFQ for TS5A12301EYFPR and get a quote within 24 hours.
