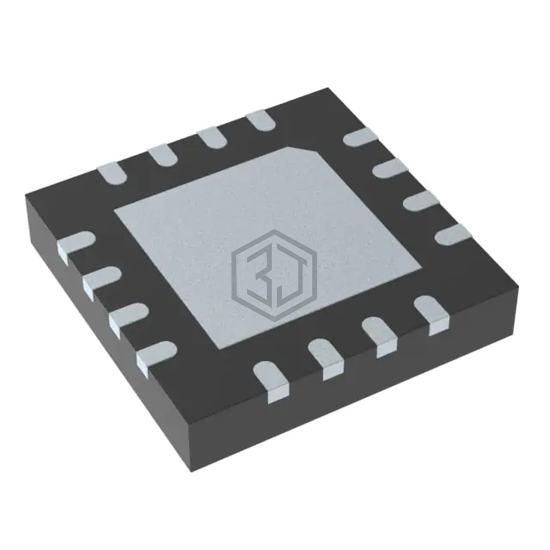

IC MULTIPLEXER
TMUX7209RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.
In Stock: 3,463
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 4PST |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 44V, ±4.5V ~ 22V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 44V, ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 205ns, 268ns |
| -3db Bandwidth | 51MHz |
| Charge Injection | -5pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 67pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX7209PWR | Texas Instruments | 44-V, LATCH-UP IMMUNE, 4:1, TWO- | 100% | View |
| PS509LEX | Diodes Incorporated | ANALOG SWITCH 17V,TSSOP-16,T&R,2 | 76% | View |
| PS508QEX | Diodes Incorporated | ANALOG SWITCH 17V,QSOP-16,T&R,2. | 68% | View |
| PS508LEX | Diodes Incorporated | ANALOG SWITCH 17V,TSSOP-16,T&R,2 | 68% | View |
| MAX4583ASE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16SOIC | 68% | View |
| PS509QEX | Diodes Incorporated | ANALOG SWITCH 17V,QSOP-16,T&R,2. | 68% | View |
Submit your RFQ for TMUX7209RUMR and get a quote within 24 hours.
