40-V, 160-M, 4-CHANNEL SMART HIG

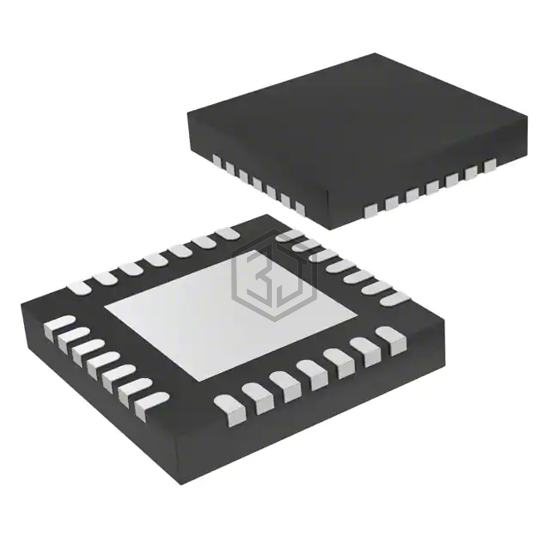

TPS274160ARLHR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. 40-V, 160-M, 4-CHANNEL SMART HIG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 28-WFQFN Exposed Pad.
In Stock: 3,089
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.35A |
| Rds On (Typ) | 160mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-WQFN (4x5) |
| Package / Case | 28-WFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS274160BRLHR | Texas Instruments | 40-V, 160-M, 4-CHANNEL SMART HIG | 100% | View |
| 98-1042 | Infineon Technologies | IC PWR SWITCH N-CHANNEL 1:1 8SO | 72% | View |
| BSP752TXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-8 | 71% | View |
| BTS4175SGAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 71% | View |
| ITS4200SMEPHUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 SOT223-4 | 60% | View |
| BTS4142NHUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 SOT223-4 | 58% | View |
Submit your RFQ for TPS274160ARLHR and get a quote within 24 hours.
