IC PWR SWITCH N-CHAN 1:1 10VSON

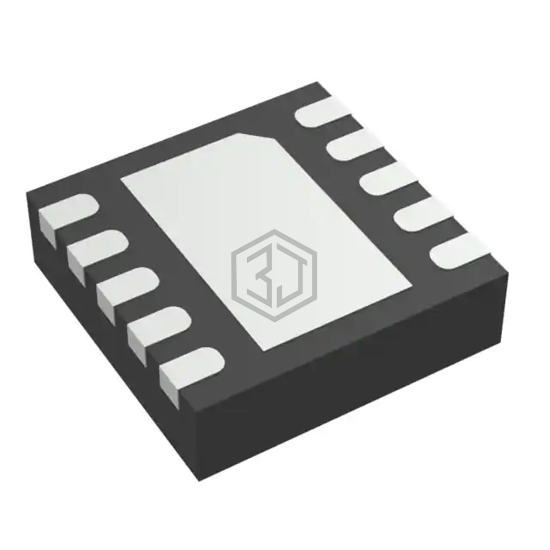

TPS2559DRCT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 10VSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 10-VFDFN Exposed Pad.
In Stock: 8,648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 6.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5.5A |
| Rds On (Typ) | 13mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-VSON (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IPS2050HQ-32 | STMicroelectronics | HIGH EFFICIENCY, HIGH-SIDE SWITC | 82% | View |
| AUIPS6011RTRL | Infineon Technologies | IC PWR SWITCH N-CHANNEL 1:1 DPAK | 71% | View |
| AUIPS6011R | Infineon Technologies | IC PWR SWITCH N-CHANNEL 1:1 DPAK | 71% | View |
| BTS5441G | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-28 | 64% | View |
| MC17XS6400EK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32HSOP | 57% | View |
| MC17XS6500BEK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 32HSOP | 53% | View |
Submit your RFQ for TPS2559DRCT and get a quote within 24 hours.
